WATTS® 0391004

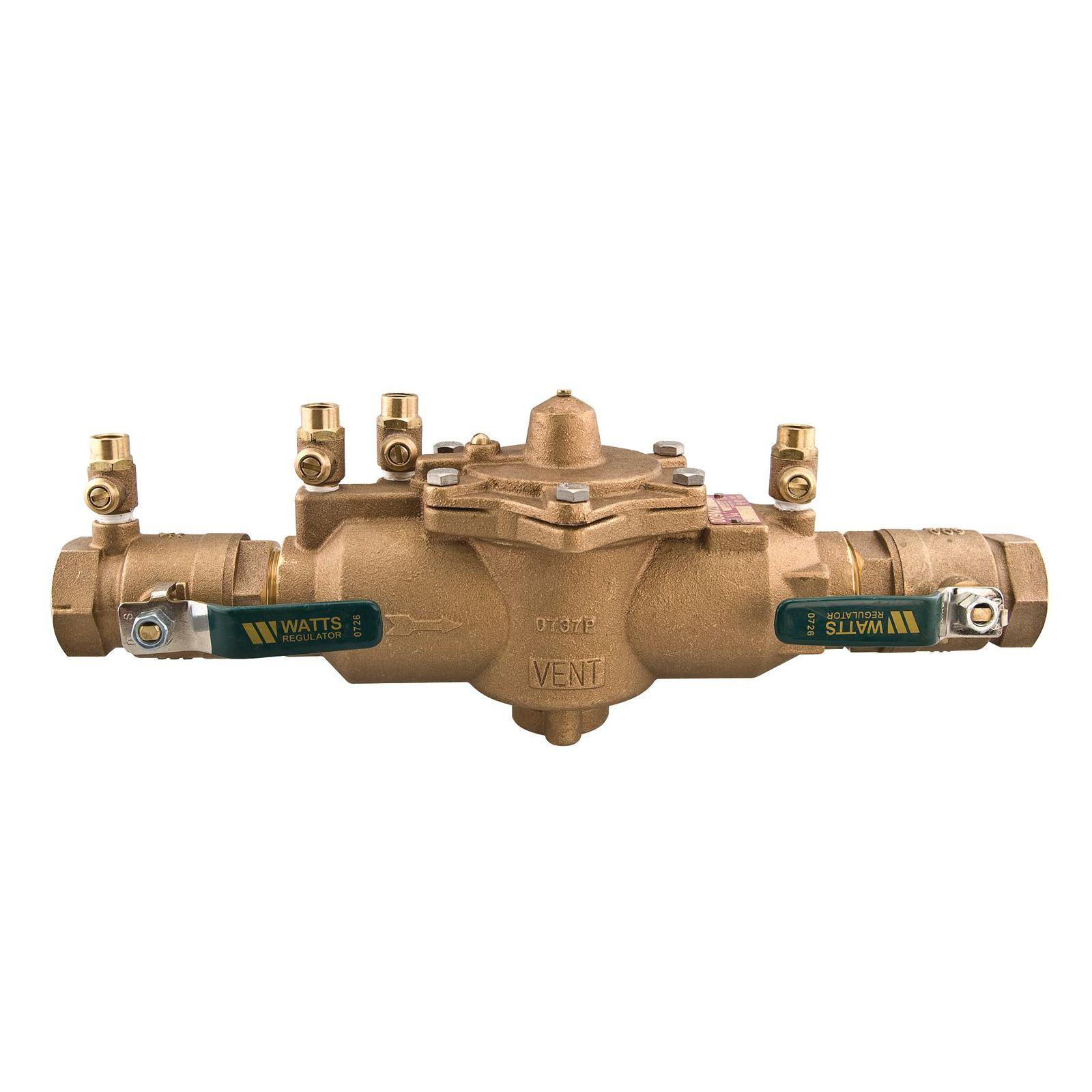

WATTS® 0391004 LF009 Inline Reduced Pressure Zone Assembly, 1 in Nominal, NPT End Style, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Reduced Pressure Zone, 7.5 fps Flow Rate, Domestic

  • MPN: 0391004
  • TPN: 43534
  • UPC: 098268051131
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 1/CTN
  • Login to see Availability

WATTS®, 0391004, Reduced Pressure Zone Assembly, Inline, Series: LF009, 1 in Nominal, NPT End Style, 175 psi Pressure, 33 to 180 deg F, 7.5 fps Flow Rate, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Full Port, Media: Water, Cast Copper Silicon Alloy Body, 14-1/2 in L Dimensions, Domestic

Type      :      Inline
Series      :      LF009
Nominal Size      :      1 in
End Style      :      NPT
Pressure Rating      :      175 psi
Temperature Rating      :      33 to 180 deg F
Flow Rate      :      7.5 fps
Ball Valve/Gate Valve type      :      Quarter-Turn Ball Valve
Backflow Type      :      Reduced Pressure Zone
Port Type      :      Full
Media      :      Water
Body Material      :      Cast Copper Silicon Alloy
Dimensions      :      14-1/2 in L
Domestic/Import      :      Domestic
  • Top entry all internals immediately accessible
  • Single access cover and modular check construction for easy of maintenance
  • Compact space saving design
  • Replaceable seats for economical repair
  • Test cocks are screwdriver slotted
  • Cast copper silicon alloy body construction for durability
  • Large body passages provides low pressure drop
  • Captured spring assemblies for safety
  • Quarter-turn full port resilient seated ball valve shutoffs
  • Internal relief valve for reduced installation clearances
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0062095_Manual.pdf
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WATTS_0122612_Specification_Sheet.pdf

Series LF009 Reduced Pressure Zone Assemblies are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. This series can be used in a variety of installations, including the prevention of health hazard cross connections in piping systems or for containment at the service line entrance. The LF009 features Lead Free construction to comply with Lead Free installation requirements. This series features two in-line, independent check valves, captured springs and replaceable check seats with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access.
