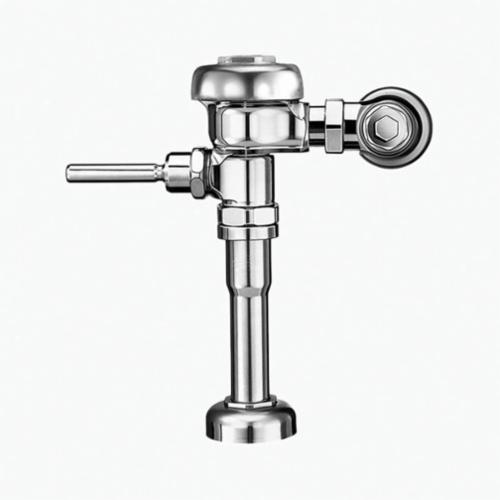

Sloan® Regal® Manual Exposed Flushometer, Single-Flush, Series: 180, Urinal Fixture, 1 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
| Type | : | Single-Flush |
| Series | : | 180 |
| Fixture Type | : | Urinal |
| Flush Rate | : | 1 gpf |
| Inlet Size | : | 1 in IPS |
| Spud Coupling | : | 1-1/2 in |
| Rough-In Size | : | 11-1/2 in |
| Valve Design | : | Diaphragm |
| Connection Location | : | Top Spud |
| Pressure Rating | : | 15 to 80 psi |
| Material | : | Semi-Red Brass |
| Finish/Color | : | Polished Chrome |
| Domestic/Import | : | Domestic |
- Flush volumes start as low as 0.5 gpf/1.9 lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
- Exposed urinal flushometer, for 1-1/4 in top spud urinals
