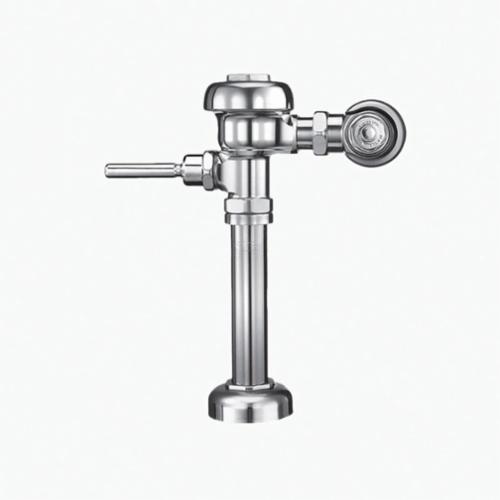

Sloan® Regal® Manual Exposed Flushometer, Single-Flush, Series: 110, Water Closet Fixture, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Type
|
:
|
Single-Flush
|
Series
|
:
|
110
|
Fixture Type
|
:
|
Water Closet
|
Flush Rate
|
:
|
3.5 gpf
|
Inlet Size
|
:
|
1 in IPS
|
Spud Coupling
|
:
|
1-1/2 in
|
Rough-In Size
|
:
|
11-1/2 in
|
Valve Design
|
:
|
Diaphragm
|
Connection Location
|
:
|
Top Spud
|
Pressure Rating
|
:
|
15 to 80 psi
|
Handle Style
|
:
|
Non-Hold Open Oscillating
|
Material
|
:
|
Semi-Red Brass
|
Finish/Color
|
:
|
Polished Chrome
|
Domestic/Import
|
:
|
Domestic
|
- Flush volumes start as low as 1.6 gpf/6.0 lpf to meet water-efficiency objectives
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Floâ„¢ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
-
