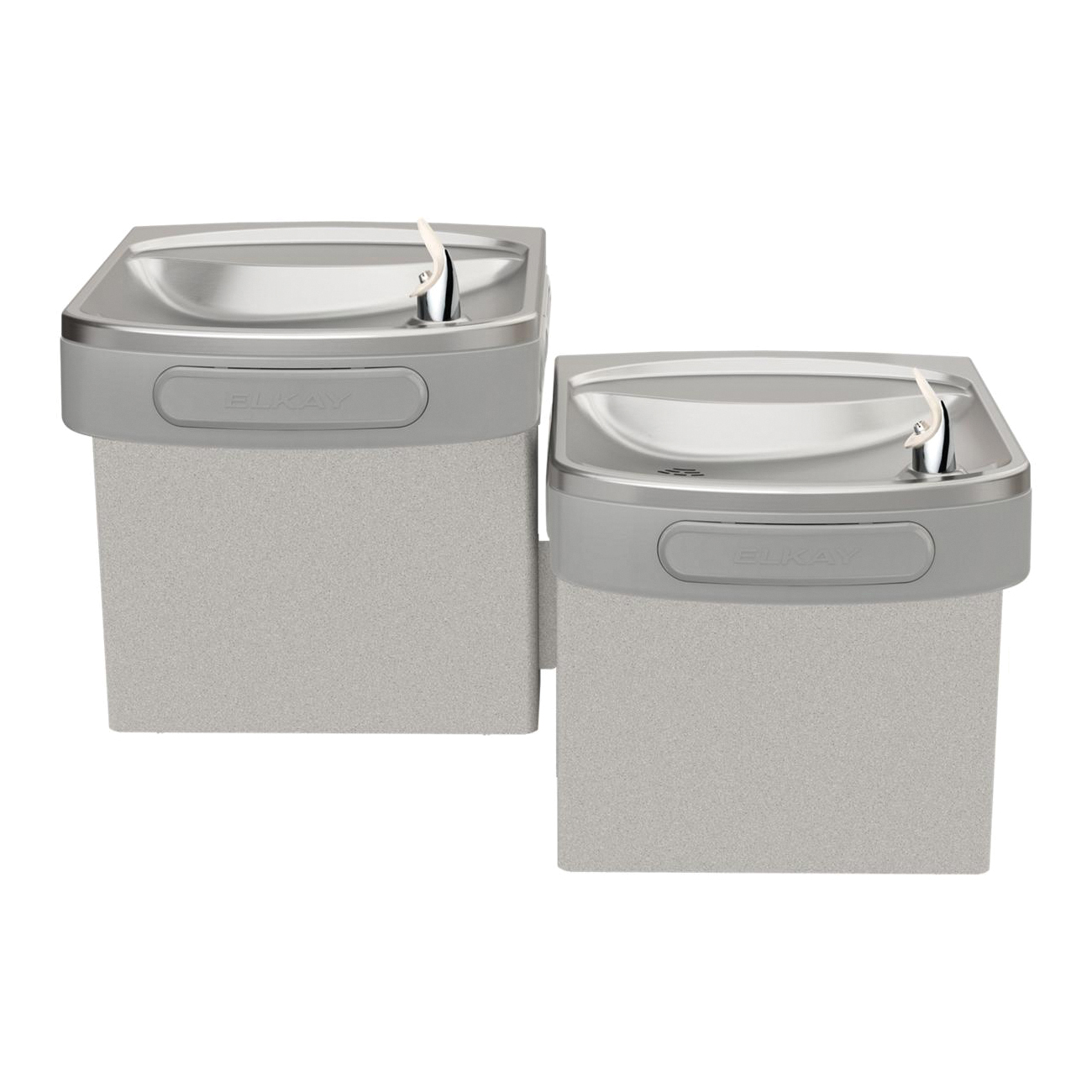

Elkay®, EZSTL8LC, Cooler, Non-Filtered Bi-Level, Series: EZSTL, Operation: Push Bar, Refrigerated Chilling Option, 3/8 in OD Tubing Connection, 20 to 105 psi Pressure, 1-1/2 in Drain Connection, Wall Mounting, 115 VAC 60 Hz Electrical Rating, R-134A Refrigerant, Galvanized Steel, Light Gray Granite, 19 in D Dimensions, Domestic
| Type | : | Non-Filtered Bi-Level |
| Series | : | EZSTL |
| Operation | : | Push Bar |
| Chilling Option | : | Refrigerated |
| Connection Type | : | 3/8 in OD Tubing |
| Pressure Rating | : | 20 to 105 psi |
| Drain Connection | : | 1-1/2 in |
| Mounting Type | : | Wall |
| Electrical Ratings | : | 115 VAC 60 Hz |
| Refrigerant Type | : | R-134A |
| Material | : | Galvanized Steel |
| Finish | : | Light Gray Granite |
| Dimensions | : | 19 in D |
| Domestic/Import | : | Domestic |
- Attractive, contemporary design matches modern architecture
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst
- Electronic bubbler push bars for easy activation
- Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean
- Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms
- Vinyl clad finish is durable and attractive
- Rated for indoor use
Specification Sheet
Self-contained wall mount electric two-level water cooler. Models EZ(S)TL8 and EZTL8 shall deliver 8 gph of 50 deg F drinking water at 90 deg F ambient and 80 deg F inlet water. Models EZ(S)TLDD shall deliver non-chilled drinking water. Unit shall meet ADA guidelines. Unit shall be lead free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120.
