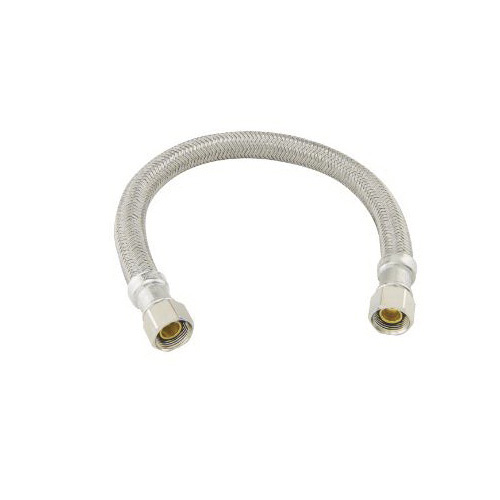

BrassCraft® Speedi Plumb® PLUS 3/8 in Compression inlet x 3/8 in Compression outlet flexible braided polymer water connector. Used to connect the water supply to your dishwasher, this connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. On the inside, our tough PVC tubing resists attack by chlorine, chloramines and other corrosive elements. The braided polymer fibers are designed to bend freely without kinking or crimping.
BrassCraft® Speedi Plumb® PLUS Lead Free Braided Water Dishwasher Connector, Flexible, Series: B1-DW, 3/8 in Nominal, Compression End Style, 0.3 in ID, 0.55 in OD, 12 in Length, 125 psi Working, 40 to 140 deg F, Polymer, Import
Type
|
:
|
Flexible
|
Series
|
:
|
B1-DW
|
Nominal Size
|
:
|
3/8 in
|
End Style
|
:
|
Compression
|
Inside Diameter
|
:
|
0.3 in
|
Outside Diameter
|
:
|
0.55 in
|
Length
|
:
|
12 in
|
Working Pressure
|
:
|
125 psi
|
Temperature Rating
|
:
|
40 to 140 deg F
|
Material
|
:
|
Polymer
|
Domestic/Import
|
:
|
Import
|
- For use in potable water distribution systems in accessible locations only
- Bends freely, without kinking or crimping, installation is easier, especially in cramped quarters
- External corrosion resistance to common household, tile and glass cleaners
- Internal corrosion resistance to harsh water conditions
- For use indoor
- 180 deg F intermittent temperature
- F: individually flag labeled
-
