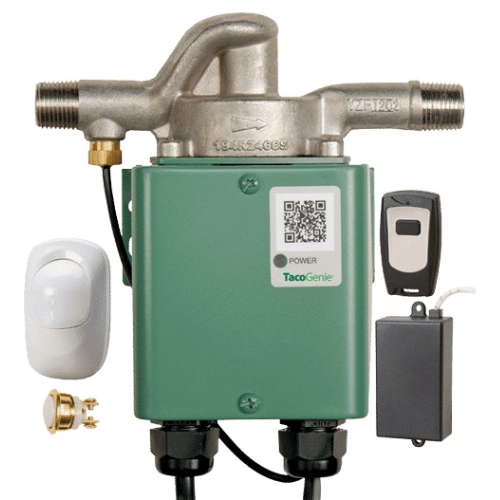

The TacoGenieâ„¢ provides hot water at your command at the same time it saves water, energy and money. The TacoGenieâ„¢ is a small, silent pump that you attach to the hot and cold water lines in the cabinet under the most remote kitchen or bath fixture in the home. When the TacoGenieâ„¢ pump is activated, the cool water you normally let run down the drain is recirculated back to the water heater through the cold water line.
Taco® TacoGenie™ Cartridge Circulator Pump, Series: 8 Series, 2.2 gpm, 1/2 in MNPT Inlet, 6.2 ft Maximum Head, 1/25 hp, 115 VAC, 60 Hz, 1 ph, 125 psi Maximum, 3250 rpm Motor, 40 to 220 deg F
Series
|
:
|
8 Series
|
Flow Rate
|
:
|
2.2 gpm
|
Inlet Size
|
:
|
1/2 in MNPT
|
Maximum Head
|
:
|
6.2 ft
|
Power Rating
|
:
|
1/25 hp
|
Voltage Rating
|
:
|
115 VAC
|
Frequency Rating
|
:
|
60 Hz
|
Maximum Pressure
|
:
|
125 psi
|
Motor Speed
|
:
|
3250 rpm
|
Temperature Rating
|
:
|
40 to 220 deg F
|
- TacoGenie, the pump circulates the hot water from the water heater and returns the cooled water back through the cold water line
- When the hot water arrives at the fixture, the TacoGenie's heat sensor and control board shut off the pump to prevent pumping excess hot water into the cold water line
- Note: Standard plumbing and distance requires the TacoGenieâ„¢ to be installed between the hot and cold water line at the most distant hot water location
- Stainless steel casing, steel stator housing
- 304 stainless steel cartridge
- Ceramic shaft
- EPDM O-ring
- Acetal body, plunger
- Noryl impeller, carbon bearings
- CT - TacoGenieâ„¢ threaded
- USK - undersink kit
-
