This low-consumption, sloping front stall urinal uses just 1.0 gallon per flush. Features include an integral flush spreader and a washout flush action for effectiveness. Its tall, stylish and understated form could make a strong functional statement in a variety of commercial applications.

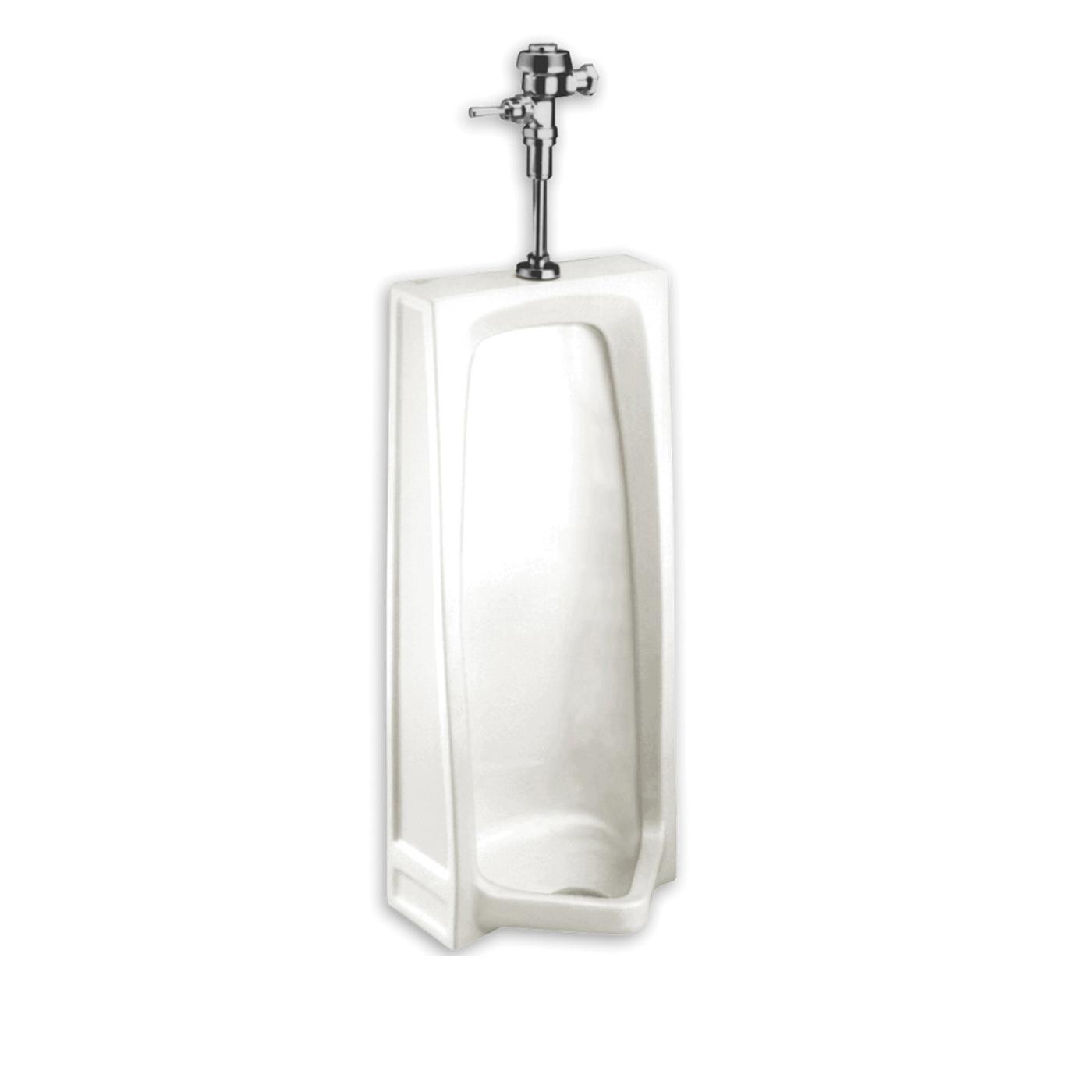

American Standard Washout Urinal, Stallbrook™, 1 gpf Flush, Elongated Bowl, Top Spud, 3/4 in Inlet Spud, 20 to 80 psi Working, Wall Mount, Vitreous China, White, 38-1/4 in H x 18 in W x 15 in D
| Collection | : | Stallbrook™ |
| Flush Rate | : | 1 gpf |
| Bowl Shape | : | Elongated |
| Spud Location | : | Top |
| Inlet Spud Size | : | 3/4 in |
| Working Pressure | : | 20 to 80 psi |
| Mounting Type | : | Wall |
| Material | : | Vitreous China |
| Finish/Color | : | White |
| Dimensions | : | 38-1/4 in H x 18 in W x 15 in D |
- Sloping front stall urinal
- Low consumption (1.0 gpf/3.8 Lpf)
- Integral flush spreader
- Washout flush action
- 3/4 in inlet spud
- Fixture only
- Meets ANSI flush requirements of 0.7 to 1.0 gpf
Data/Spec Sheet-1
