BrassCraft® G2R12X C 43392
Send Print

BrassCraft® G2R12X C

BrassCraft® G2R12X C G2™ 1/4 Turn Straight Stop, 1/2 x 3/8 in Nominal, FNPT x Compression, 125 psi, Brass Body, Polished Chrome, Domestic

  • MPN: G2R12X C
  • TPN: 43392
  • UPC: 026613138572
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Sold As: 60/PK
  • Login to see Availability

BrassCraft® Straight Stop, 1/4 Turn, Series: G2™, 1/2 x 3/8 in Nominal, FNPT x Compression End Style, 125 psi Pressure, Media: Water, Brass Body, C36000 Brass Trim, Santoprene Stem Barrel/EPDM Stem O-Ring Softgoods, 40 to 140 deg F, 1.03 x 2.03 in Dimension, Polished Chrome, Domestic

Type      :      1/4 Turn
Series      :      G2™
Nominal Size      :      1/2 x 3/8 in
End Style      :      FNPT x Compression
Pressure Rating      :      125 psi
Media      :      Water
Body Material      :      Brass
Trim Material      :      C36000 Brass
Softgoods Material      :      Santoprene Stem Barrel/EPDM Stem O-Ring
Temperature Rating      :      40 to 140 deg F

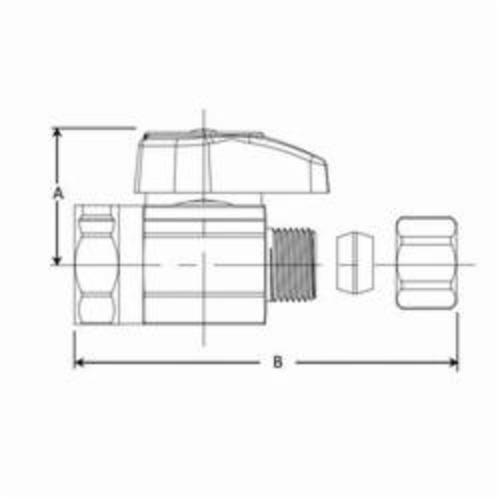

Dimensions      :      1.03 x 2.03 in
Domestic/Import      :      Domestic
  • Full flow operation with no waterway obstructions
  • Corrosion-resistant handle is plated in an attractive chrome plated finish
  • Easy-to-remove handle with screw attachment protect against accidental stop operation during rough-in
  • No special installation tools required
  • pdf Specification Sheet https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BrassCraft_G2R10XC_Specification_Sheet.pdf
  • pdf Instruction/Installation Manual https://www.texasplumbingsupplyinc.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BrassCraft_OR1512AX_C_Manual.pdf

Manufactured to the highest quality standards, G2™ Series 1/4-Turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4-Turn operation with positive shut-off.
